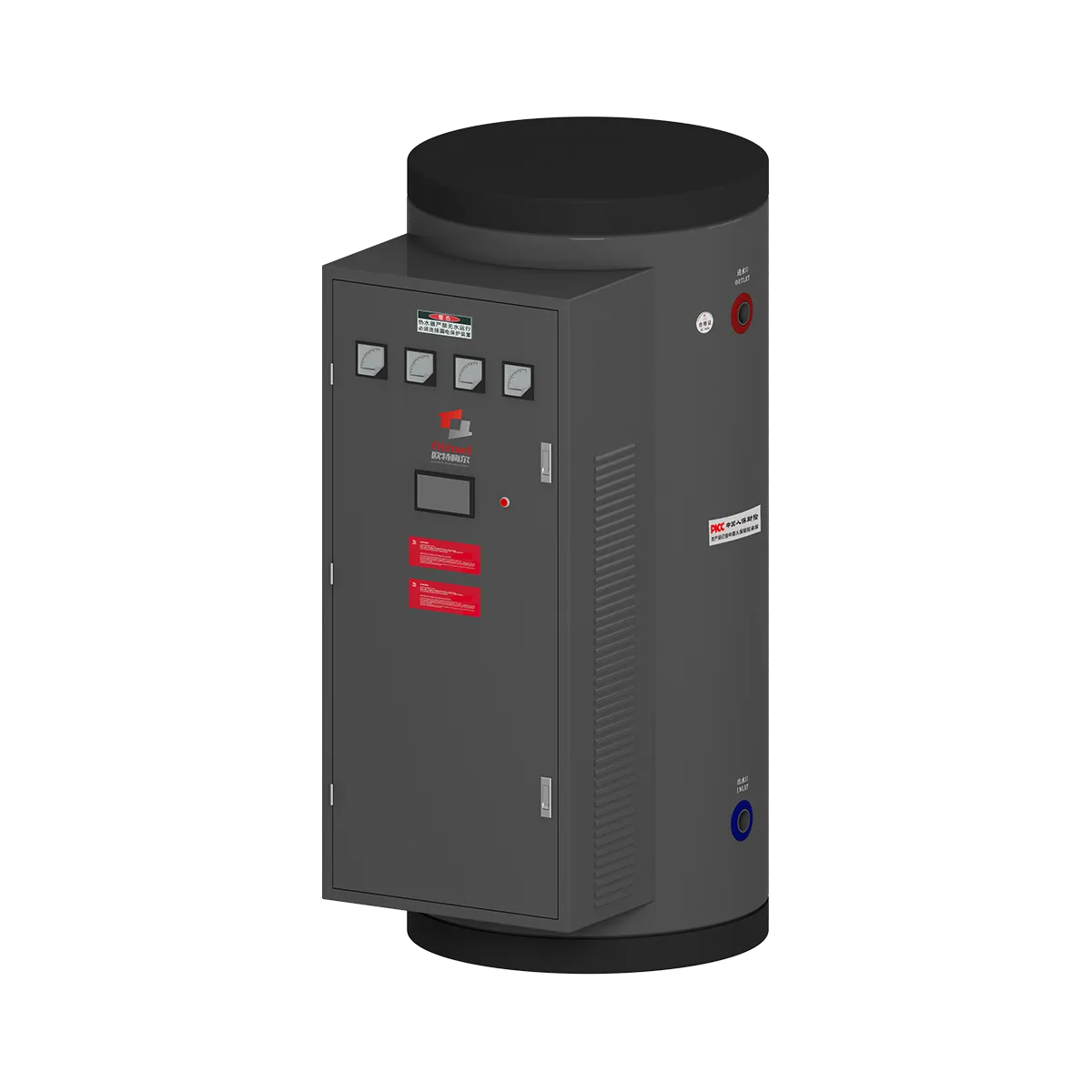

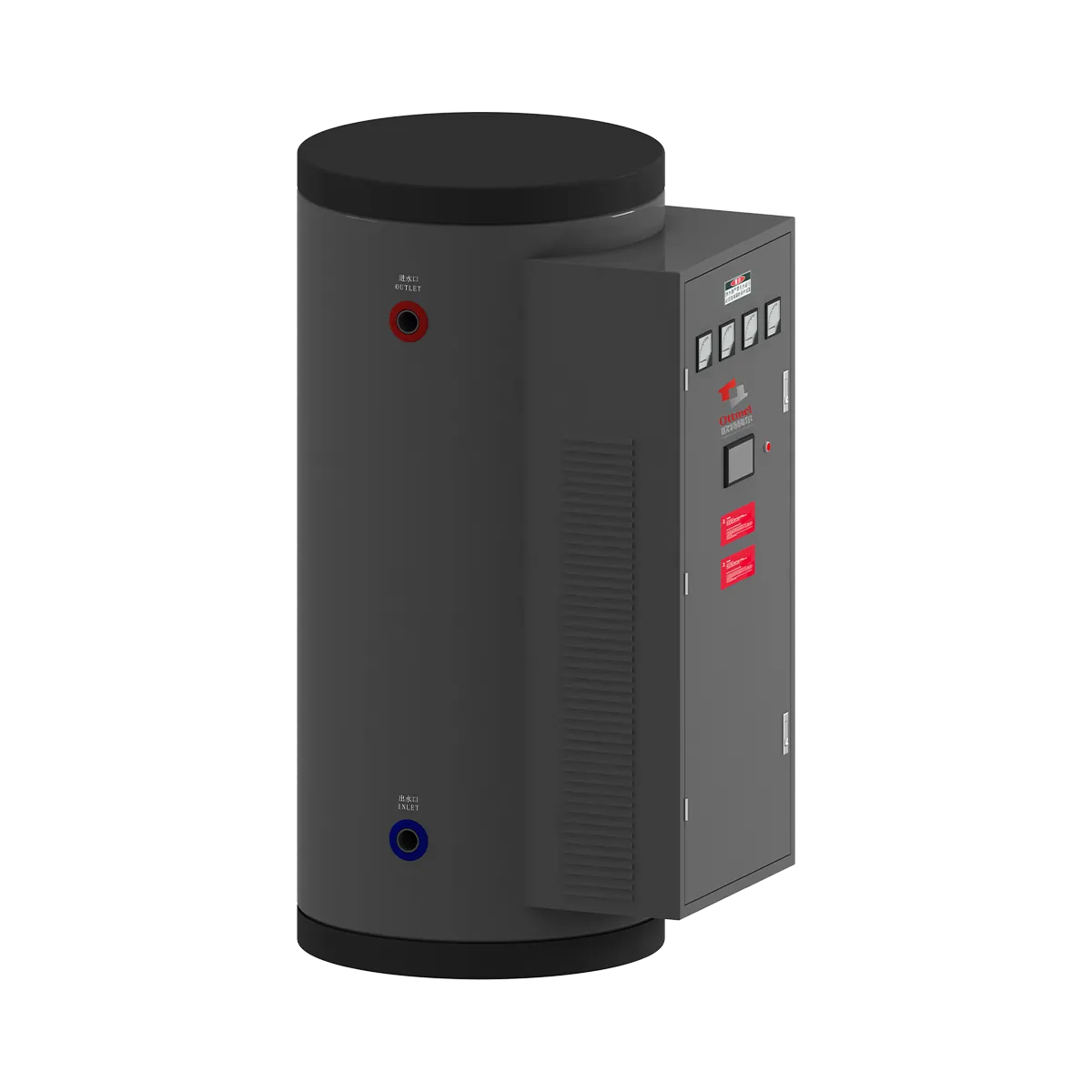

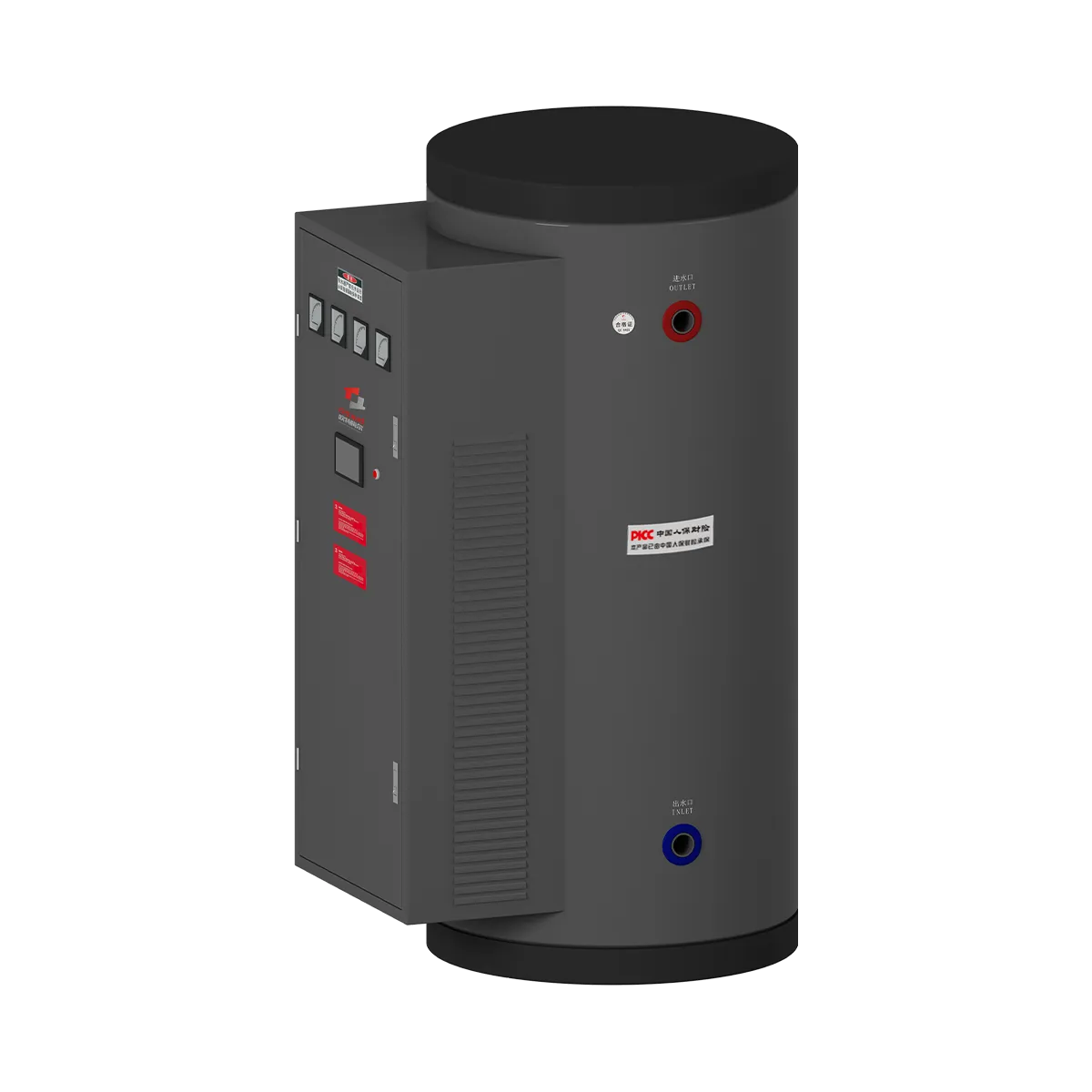

Commercial Electric Boiler

Product Image

Product Description

Model		EBF180	EBF360	EBF720
Storage capacity (L)		495	1150	1150
Rated power (kW)		180	360	720
Power supply		380V/50Hz	380V/50Hz	380V/50Hz
Rated working pressure(Mpa)		Atmospheric pressure	Atmospheric pressure	Atmospheric pressure
Temperature setting range（℃）		30-85	30-85	30-85
Number of heating elements (pcs)		5	10	20
Relative hot water output(L/h)	△t=25℃	6192	12384	24768
	△t=35℃	4422	8845	17691
	△t=55℃	2814	5629	11258
Inlet/Outlet pipe diameter		DN50	DN65	DN100
Drain valve diameter		DN25	DN50	DN50
Overall dimensions (mm)	Total height A(mm)	2100	2100	2350
	Water outlet height B(mm)	1750	1950	2040
	Water inlet height C(mm)	250	265	285
	Fumace body dameter D(mm)	710	1000	1000
	Maximum depth E(mm)	860	1260	1260
Product net weight (kg)		250	273	325

Water tank made of Baosteel Blue-armor enamel inner tank.

Integral polyurethane foaming Insulation layer.

Heatwell Electric heating element.

LED large display Touch control panel.

Industrial-grade imported Circuit breakers and contactors.

Equipped with safety valve Pressure gauge, air vent valve.

Tank uses Blue-Armor enamel inner tank; outer casing is aluminum-magnesium alloy color-coated steel to ensure long service life.

Uses industrial-grade imported branded electrical control components for reliable performance and stable operation.

Enable grouped heating control, allowing selection of heating power according to actual demand.

Each control circuit is equipped with an independent leakage protection breaker A fault in a single circuit does not affect the normal operation of other circuits.

Fully automatic operation, with over-temperature protection, dry-burning protection, anti-freeze protection, and leakage protection.

24-hour segmented timing control for scheduled on/off operation.
